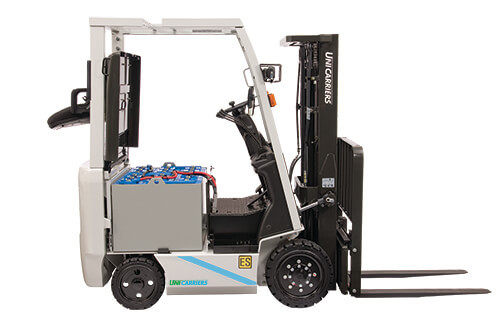

Small Electric Cushion Forklift

3000 - 8000 lb Load Capacity

A true workhorse, the electric BX Series combines a capacity of up to 8,000 lbs. and exceptional power efficiency with an advanced feature package that includes self-contained onboard diagnostics and controlled rollback. The BXC30N-BXC80N electric counterbalanced forklift series combines optimal comfort with cutting-edge technology that results in reduced energy consumption and longer run times.

Features

Specifications

Model Capacity (lb) Lift Height (in) 2 Power Type Length (in) Width (in) Height (in) 1 Weight (lb) 1
Model BXC30N Capacity (lb) 3000 Lift Height (in) 2 130 Power Type 36/48 Length (in) 80.9 Width (in) 38.2 Height (in) 1 86.2 Weight (lb) 1 6,550
Model BXC50LN Capacity (lb) 5,000 Lift Height (in) 2 130 Power Type 36/48 Length (in) 90.7 Width (in) 42.1 Height (in) 1 87.4 Weight (lb) 1 8,820
Model BXC65N Capacity (lb) 6,500 Lift Height (in) 2 138 Power Type 36/48 Length (in) 96.5 Width (in) 43.3 Height (in) 1 87.4 Weight (lb) 1 11,395
Model BXC40N Capacity (lb) 4,000 Lift Height (in) 2 130 Power Type 36/48 Length (in) 84.8 Width (in) 42.1 Height (in) 1 87.4 Weight (lb) 1 8,090
Model BXC40R Capacity (lb) 4,000 Lift Height (in) 2 130 Power Type 36/48 Length (in) 84.8 Width (in) 42.1 Height (in) 1 87.4 Weight (lb) 1 8,090
Model BXC50N Capacity (lb) 5,000 Lift Height (in) 2 130 Power Type 36/48 Length (in) 86.2 Width (in) 42.1 Height (in) 1 87.4 Weight (lb) 1 8,950
Model BXC50R Capacity (lb) 5,000 Lift Height (in) 2 130 Power Type 36/48 Length (in) 86.2 Width (in) 42.1 Height (in) 1 87.4 Weight (lb) 1 8,090
Model BXC60N Capacity (lb) 6,000 Lift Height (in) 2 130 Power Type 36/48 Length (in) 94.1 Width (in) 43.3 Height (in) 1 87.4 Weight (lb) 1 10,550
Model BXC35N Capacity (lb) 3,500 Lift Height (in) 2 130 Power Type 36/48 Length (in) 81.3 Width (in) 38.2 Height (in) 1 86.2 Weight (lb) 1 6,945
Model BXC80N Capacity (lb) 8,000 Lift Height (in) 2 138 Power Type 36/48 Length (in) 100.2 Width (in) 43.3 Height (in) 1 87.4 Weight (lb) 1 12,380
Show All

Resources

BX Series BXC30-BXC80 Product Brochure
BX Series BXC30-BXC80 Product Spec Sheet
